JW1325-M7-C Gear Rack Transmission

CO2 Laser cutting machine

1325C CO2 laser cutting machine with gear rack trasmission of Y axis is an ideal solution for straight or curving cutting of felt, textile, cloth, leather. We can design and nest patterns on the computer or after printed, then use laser cut machine for fabric. So this industrial laser cutter engraver is not only suitable for large-scale processing industries such as clothing, machinery, and advertising, but also meets the needs of small industries such as the model industry, crafts industry, and bamboo products’industry.

Features

It's gear rack transmission for 1325C co2 laser cutting machine, with high accuracy, high stability.

01

Unique upper flue system that sucks away the smoke

02

Whole machine is equipped with leakage overload protector

03

Independent laser power supply to avoid high voltage interference

04

Filament optical frame, the light path is more stable

Parameters

DescriptionJW1325-C
Working Area
1300*2500 mm
Working VoltageAC 220V±10%,50HZ
Control SystemRuida controller
DriverLeadshine stepper
Machine tableBlade table、Honeycomb table(Optional)
Laser typeGlass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm
Energy regulationPure circulating water cooling
energy regulation0-100% stepless control, 0-100% adjustable within the software
Minimum Formed Words≤±0.05mm
Engraving speed0 -1200mm/s
Cutting speed0 - 600mm/s
Minimum Formed WordsEnglish word 1mm
Working environmentTemperature: 0-45C, Humidity 5-95%(No Condensate Water)
Total power<3KW
Graphic format supportedBMP, JGP, PNG, DXF, etc.


CUTTING CAPACITY



PowerAcrylicWoodMDF
  80 W10mm10mm5mm
100 W15mm13mm7mm
150 W20mm18mm10mm
180 W22mm20mm12mm
300 W30mm30mm18mm



Floor Plan

JW1325-M7-C Gear Rack Transmission



Machine Details

Laser tube

Laser tube

Reci or Yongli laser tube, one of the most famous brands in China, can replace it for you for free within one year of warranty.

Ruida controller

Ruida controller

The most recent DSP control system, USB interface, LCD screen, and the board as a whole have better ability to resist high voltage and anti-static interference.

Lens holder

Lens holder

The synchronous gear made of pure copper has the characteristics of wear resistance and corrosion resistance. And it is a filament optical frame made of pure copper, which has the characteristics of not easy to change light, more stable optical path, fast heat dissipation, and can cool the lens.

Industry Water chiller

Industry Water chiller

The constant temperature of water can keep the laser power stable, work more steady and fast

Laser power supply

Laser power supply

We provide a stabilized laser power supply to continuously supply power to the laser tube, making the voltage more stable, the optical path more stable, and with the cutting effect good.

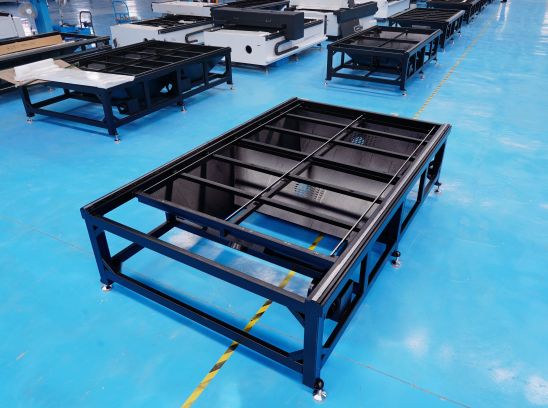

Heavy-duty bed

Heavy-duty bed

Square tube welding, CNC machining center finishing treatment, to prevent vibration when the machine is working and make the work more stable

Blade table

Blade table

The table has been processed by a pentahedron machining center and has the characteristics of high precision and wear resistance.

Industry Applications

  • 3D MDF eagle

    3D MDF eagle

    Acrylic LOGO cutting

    Acrylic LOGO cutting

    bingdundun

    bingdundun
